After three years of a collaborative R&D work between CEA, Defacto Technologies, and Innova Advanced Technologies, SoC PLANNER platform is now available for early-adopters. The platform introduces an automated front-end design flow that bridges architecture specification, Design Space Exploration, workflow orchestration and RTL generation within a single environment, while integrating sustainability metrics throughout the exploration process.
Grenoble, France - [2026, September 8] CEA, Defacto Technologies, and Innova Advanced Technologies today announced the completion of SoC PLANNER, a three-years project funded by BPI France, as part of the France 2030 program, and aiming to develop next-generation System-on-Chip (SoC) design exploration platform. SoC PLANNER is now ready for early adopters.
With over a trillion chips manufactured every year and application requirements evolving faster than ever, across automotive, HPC, and AI, the pressure on SoC design teams has never been higher. For a complex SoC project, the number of possible configurations to evaluate can reach into the millions, with parameters deeply interdependent and objectives (power, performance, area, time-to-market) fundamentally in tension. Manual or semi-manual design exploration, even when supported by experienced architects, remains highly complex and unsustainable. SoC PLANNER provides full automation and addresses such challenges.
A Fully Integrated, Automated Design Flow
SoC PLANNER combines three complementary technologies developed by the project partners:
- CEA's A-DECA, which automates multi-objective Design Space Exploration using simulation, analytical models and AI-assisted optimization;
- Defacto's SoC Compiler, which automatically transforms selected architectural configurations into synthesizable RTL;
- Innova's PDM, which orchestrates design flows, computing resources and engineering data throughout the exploration process
Together, these technologies create a continuous architecture-planning flow spanning specification, exploration, implementation and design management. A user simply provides design parameters, including the ranges to explore and target KPIs, and sets priorities across power, performance, and area efficiency. From there, the platform's engine takes over autonomously: estimating area, performance (bandwidth, latency), and power across the full configuration space; identifying Pareto-optimal configurations; and automatically generating the corresponding RTL code. The result is a single, seamless flow bridging architectural exploration and design implementation.
Uniquely, SoC PLANNER assigns an eco-design footprint score to each configuration, introducing sustainability as a first-class design criterion. To our knowledge, this metric is unique in the chip design industry and can be incorporated directly into the exploration strategy.

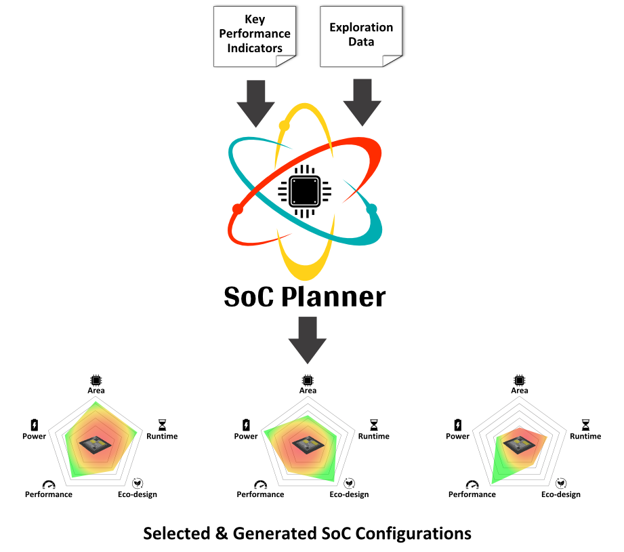

Figure: High level SoC Planner
Validated on Real-World Use-Cases
The platform was validated on two representative industrial design scenarios covering complementary abstraction levels.
The first use-case targets the automated exploration of a configurable AI accelerator, where SoC Planner identified Pareto-optimal architectures balancing latency, power, energy consumption and silicon area, before automatically generating synthesizable RTL.
The second use-case focuses on system-level exploration of a next-generation HPC processor based on the Rhea platform. Thousands of architectural alternatives were evaluated through automated multi-objective optimization, enabling rapid identification of high-quality design trade-offs while significantly reducing exploration effort.
Across these industrial use cases, the platform demonstrated:
- up to 30–40% shorter exploration cycles;
- fully automated generation of implementation-ready RTL;
- seamless integration between architecture exploration and industrial RTL generation;
- support for sustainability-aware exploration alongside conventional PPA optimization.
By combining automated Design Space Exploration, workflow orchestration and RTL generation into a unified front-end design flow, SoC Planner establishes the foundations for a new generation of implementation-aware and sustainability-aware SoC architecture planning.
Availability
A first version of the SoC PLANNER flow is ready first users offering to design teams design exploration with aggressive PPA to generate RTL sustainability-aware design configurations.
